Hawker Jet Series Winglets | Aviation Partners

Hawker 800 and 800XP Blended Winglets

Fly the only full-size, full-performance Winglets on your Hawker.

Own the same winglet technology flying on more than 6,000 Boeing Jets

Farther

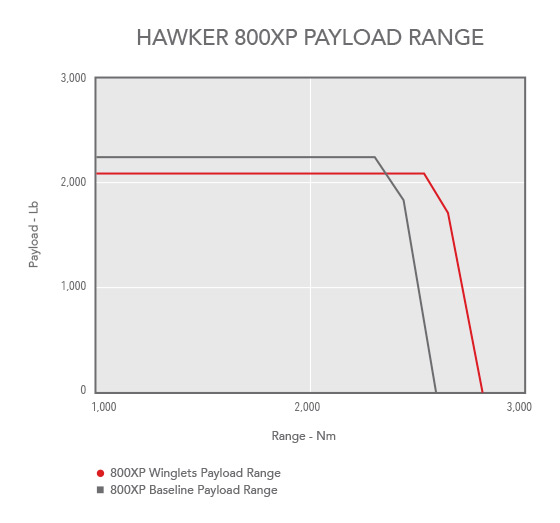

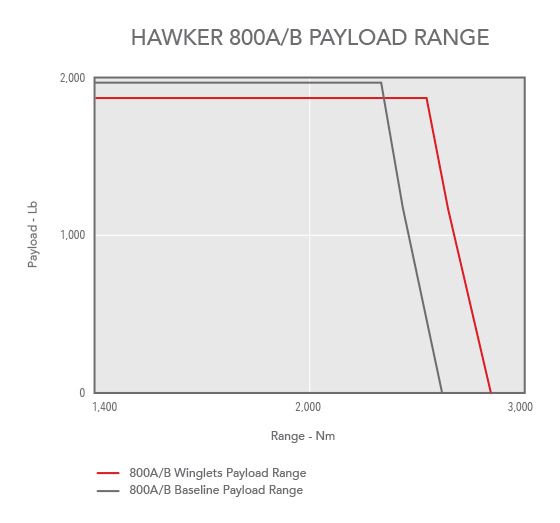

Scimitar™ tip Blended Winglets cut fuel consumption by up to 7 percent, increasing your range by up to 180 nautical miles. This enables you to fly nonstop across the U.S., go from California to Hawaii, or comfortably reach Jeddah from Paris. You can also complete shorter missions with greater payload and fuel reserves.

Farther with Winglets
Farther with Winglets

Farther

Scimitar™ tip Blended Winglets cut fuel consumption by up to 7 percent, increasing your range by up to 180 nautical miles. This enables you to fly nonstop across the U.S., go from California to Hawaii, or comfortably reach Jeddah from Paris. You can also complete shorter missions with greater payload and fuel reserves.

Faster with Winglets

Faster

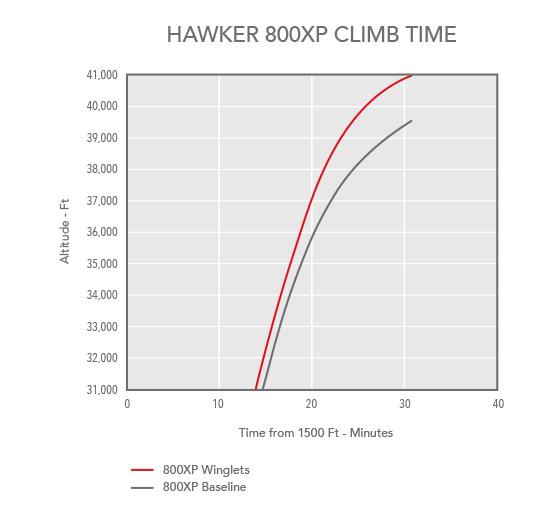

With Blended Winglets, you can fly up to 18 knots faster at the same rate of fuel burn. You’ll climb faster to cruising altitude. Step climbs are reduced or eliminated for most trips. Optimum cruising altitude will be up to 2,000 feet higher, freeing you from traffic and weather for more direct ATC routing.

Cooler

Let's face it. Blended Winglets make a Hawker look cooler. You gain the sleek, athletic look of a new airplane, which increases the enjoyment of every mile you fly, and makes it even more attractive at resale. You also cut CO² emissions with this technology. So you're visibly eco-friendly.

Cooler with Winglets
Cooler with Winglets

Cooler

Let's face it. Blended Winglets make a Hawker look cooler. You gain the sleek, athletic look of a new airplane, which increases the enjoyment of every mile you fly, and makes it even more attractive at resale. You also cut CO² emissions with this technology. So you're visibly eco-friendly.

Smarter with Winglets

Smarter

Blended Winglets let you fly 30 minutes longer. You can also depart from high-altitude airports on hot days with up to 1,500 lbs. more weight. Another smart feature: Our exclusive LED navigational lighting system for more reliability, longer life and higher visibility.

Download the docs. Review the specs. See for yourself.

Schedule a Retrofit

Scimitar Tips

Existing Hawker winglet customers can upgrade to the current Scimitar Tip configuration. For information contact support@winglets.com

Design

Wing Span Increase

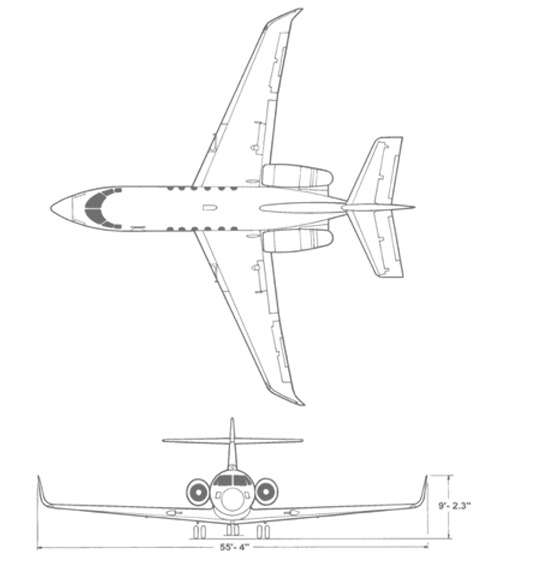

The system features an actual four-foot overall wingspan increase. With added wingspan in combination with the Blended Winglets, the airplane climbs higher and faster and flies farther than the standard Hawker 800 series aircraft.

Removal of Wing Fences and Installation of Vortilons

For Hawker 800A/B the modification removes the large fences from the wing and replaces them with leading edge vortilons. This further reduces drag, preserves favorable low speed performance, and results in a very clean look.

Design and Construction

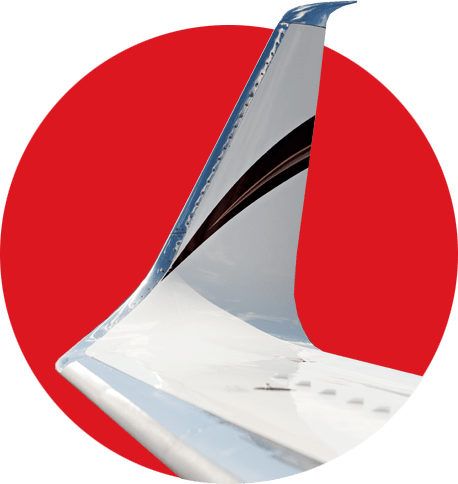

The construction of the Hawker winglet features modern composite graphite skin and full-depth bonded honeycomb core with integrally bonded attachment fittings. The leading edge is polished aluminum. Total incremental installed weight of the Performance Enhancement System is less than 112 lbs. for the Hawker 800 and 118 lbs. for the 800XP.

Design Winglets

In-service benefits

  • Minimal impact on existing airframe inspections
  • Reduced inspections associated with aileron balance horn
  • Improved dispatch reliability for wingtip nav and strobe lights
  • Winglets are easily interchangeable in the event of in-service damage
  • Performance data provided to Ultra-Nav and multiple flight planning providers

Timely tips

  • Many Blended Winglets sales occur during a change in ownership, enabling purchasers to take advantage of post-acquisition downtime and financing opportunities
  • Routine 48-month maintenance, avionics upgrade, interior refurbishment or as a standalone operation - all excellent times to install
  • Blended Winglets reduce noise on takeoff, preventing violations at noise-restricted airports
